Advanced Magnetic Workholding for Modern Machining #

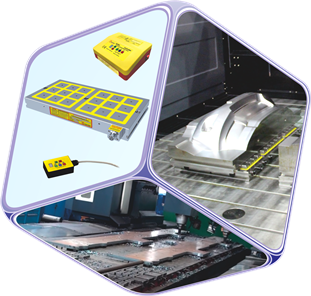

The Electro-Permanent Magnetic Chuck EEPM Series offers a versatile and efficient solution for workpiece clamping across a wide spectrum of machining operations. Engineered for precision, reliability, and adaptability, these magnetic chucks are suitable for CNC vertical and horizontal machining centers, large vertical lathes, double column machining centers, and more.
Product Lineup: EEPM Series Magnetic Chucks #

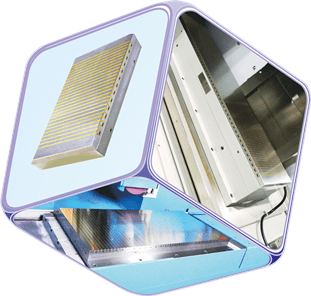

Electro-Permanent Milling Magnetic Chuck EEPG Series
Electro-Permanent Milling Magnetic Chuck EEPM-A.B.D.E Series

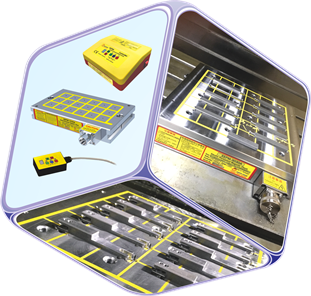

Electro-Permanent Magnetic Chuck EEPM-A Series

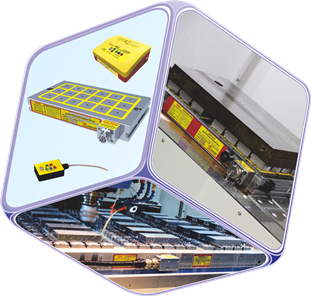

Electro-Permanent Magnetic Chuck EEPM-B Series

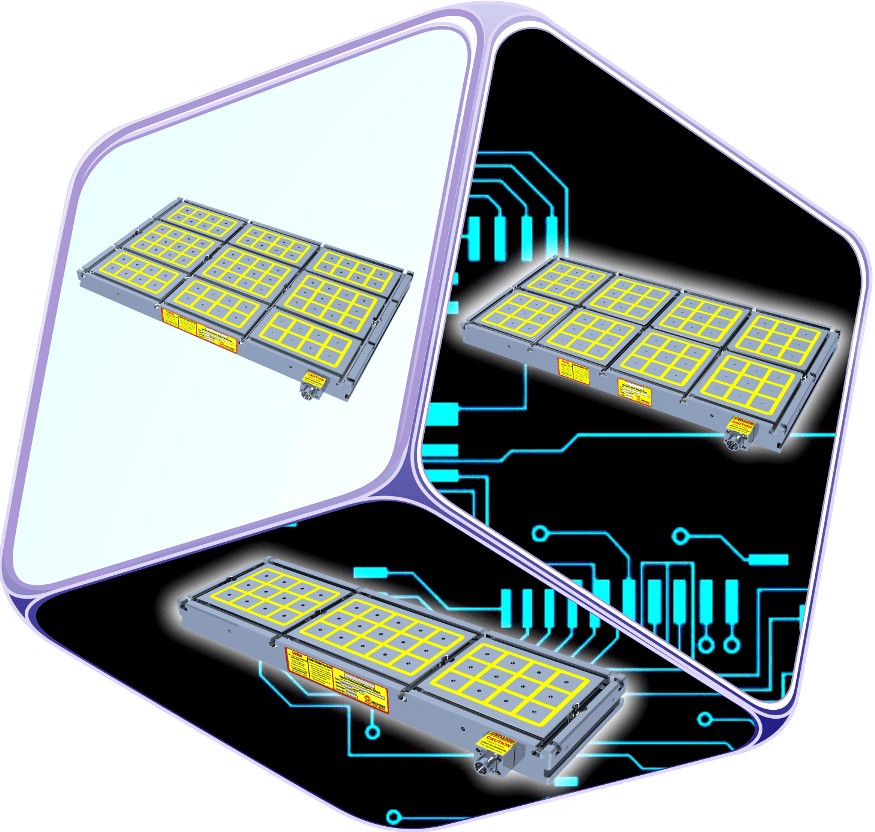

Electro-Permanent Magnetic Chuck-Connection Type EEPM-C Series
Electro-Permanent Magnetic Chuck EEPM-D Series

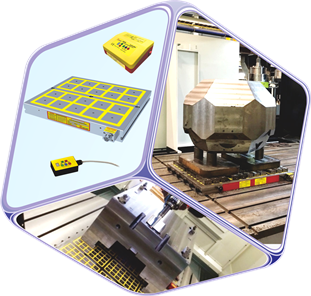

Electro-Permanent Magnetic Chuck EEPM-E Series

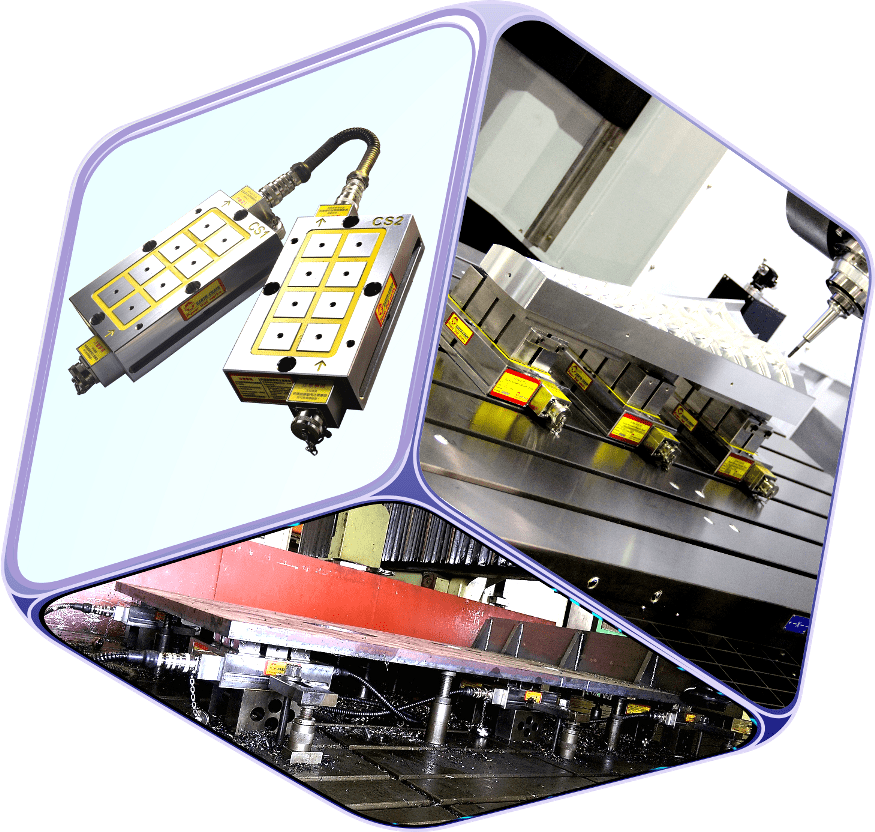

Electro-Permanent Magnetic Chuck EEPM-SL Series
Electro-Permanent Magnetic Chuck EEPM-TA Series
Option controller for multi-EEPM chucks

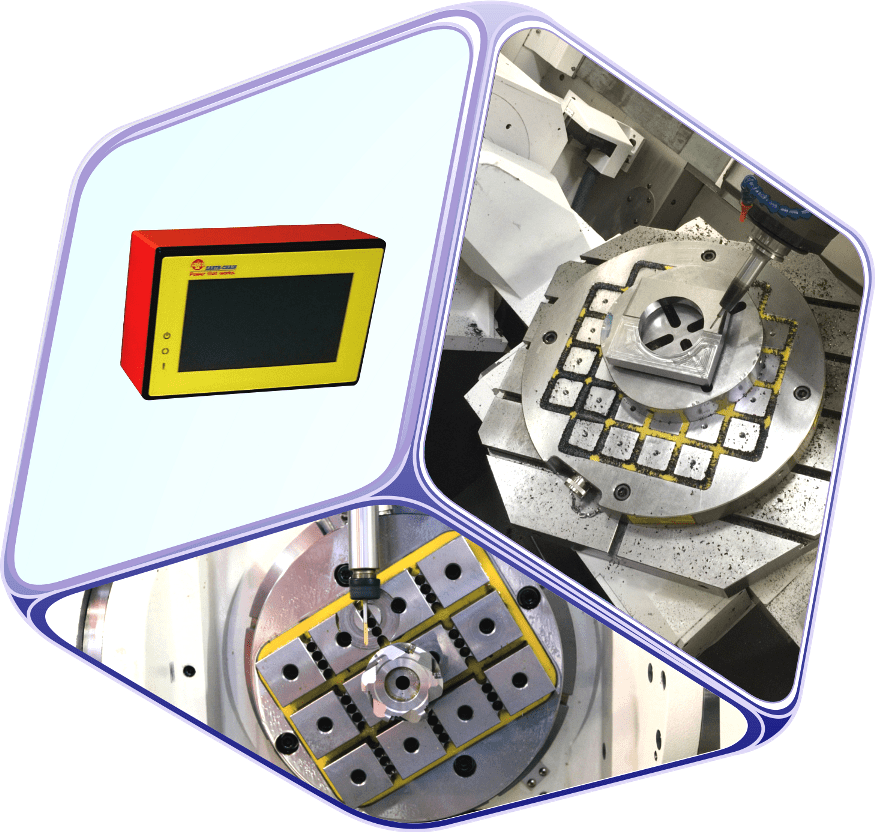

Human Machine Interface controller Option EEPM-HMI
Key Features and Applications #
- High Precision Clamping: The EEPG Series is ideal for workpieces requiring high accuracy, such as those used in surface grinding.

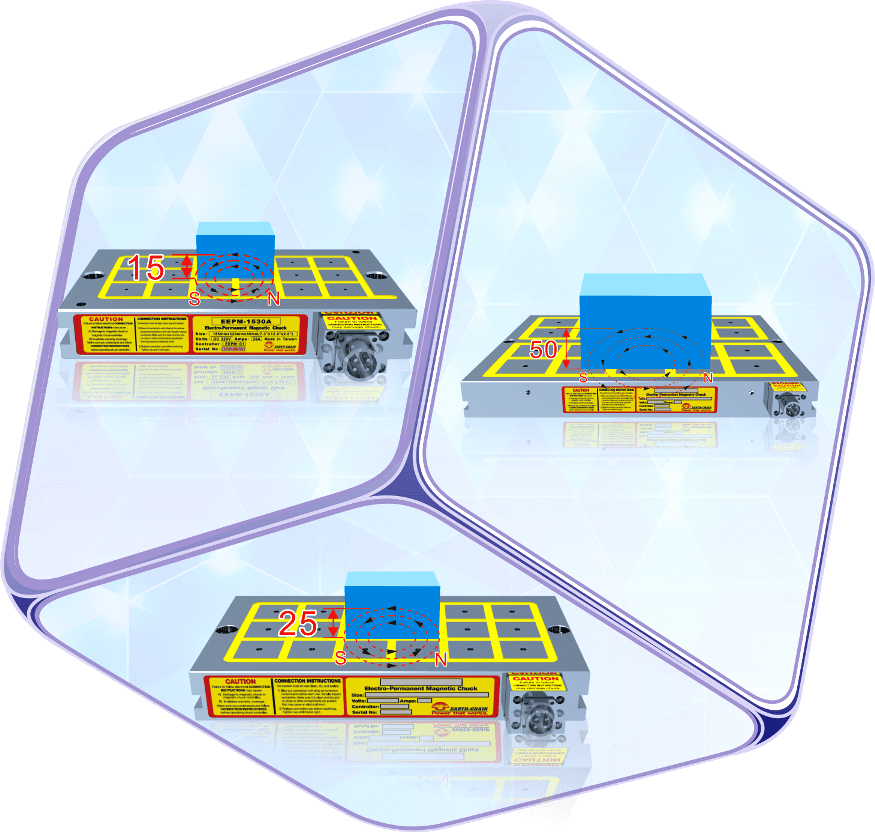

- Versatile Workpiece Compatibility: The EEPM-A, B, D, and E Series cover a range of workpiece sizes and thicknesses, from thin and small to large and high-thickness components.
- Heavy-Duty and Large-Scale Machining: The EEPM-C and TA Series are designed for use on large vertical lathes, double column machining centers, and for heavy-duty applications, often in combination with mechanical clamping tools.
- Flexible Clamping Solutions: The EEPM-SL Series supports all workpiece sizes and can be used alongside mechanical clamping tools for added versatility.
- Advanced Control Options: Optional controllers, including multi-chuck controllers and Human Machine Interface (HMI) options, are available for enhanced automation and ease of use.
Product Selection Guide #
- EEPG Series: For high-accuracy clamping, especially in surface grinding.
- EEPM-A Series: Suitable for thin, small, and medium workpieces.
- EEPM-B Series: Designed for medium and small workpieces.
- EEPM-C Series: Connection type, suitable for large vertical lathes and double column machining centers.
- EEPM-D Series: For medium and large workpieces.
- EEPM-E Series: For large and high-thickness workpieces.
- EEPM-SL Series: Universal use for all workpiece sizes, compatible with mechanical clamping.
- EEPM-TA Series: For large workpieces, heavy-duty machining, used with mechanical clamping.
- Controllers: Multi-chuck and HMI options for system integration and automation.
Contact and Further Information #
For more details, technical specifications, or to discuss custom solutions, please visit the Earth-Chain EEPM Series page or reach out via the contact information provided on the website.
