Advanced Magnetic Workholding for CNC Horizontal Machining Centers #
Modern CNC horizontal machining centers demand reliable, efficient, and precise workholding solutions. At Earth-Chain, we offer a range of magnetic workholding products designed to meet the needs of horizontal machining applications. Below, we introduce three key models, each tailored for specific requirements and machining environments.
Available Magnetic Workholding Models #
- Permanent Magnetic Clamping Block ECB-120V12
- Electro-Permanent Magnetic Chuck EEPM-V Series
- Electro-Permanent Magnetic Chuck-Connection Type EEPM-C Series
Permanent Magnetic Clamping Block ECB-120V12 #
The ECB-120V12 is engineered for secure and stable clamping in horizontal machining environments. Its robust design ensures high holding force and repeatable accuracy, making it suitable for a variety of workpiece sizes and shapes.
ECB-120V12 Application 1
ECB-120V12 Application 2
ECB-120V12 Application 3
ECB-120V12 Application 4
ECB-120V12 Application 5
ECB-120V12 Application 6
Electro-Permanent Magnetic Chuck EEPM-V Series #
The EEPM-V Series offers the benefits of electro-permanent technology, providing strong holding power with the convenience of easy activation and deactivation. This series is ideal for applications requiring frequent workpiece changes and high machining accuracy.
EEPM-V Series Application 1
EEPM-V Series Application 2
EEPM-V Series Application 3
EEPM-V Series Application 4
Electro-Permanent Magnetic Chuck-Connection Type EEPM-C Series #
The EEPM-C Series is designed for flexible connection and integration into various CNC horizontal machining setups. Its modular approach allows for customized configurations to suit specific production needs.

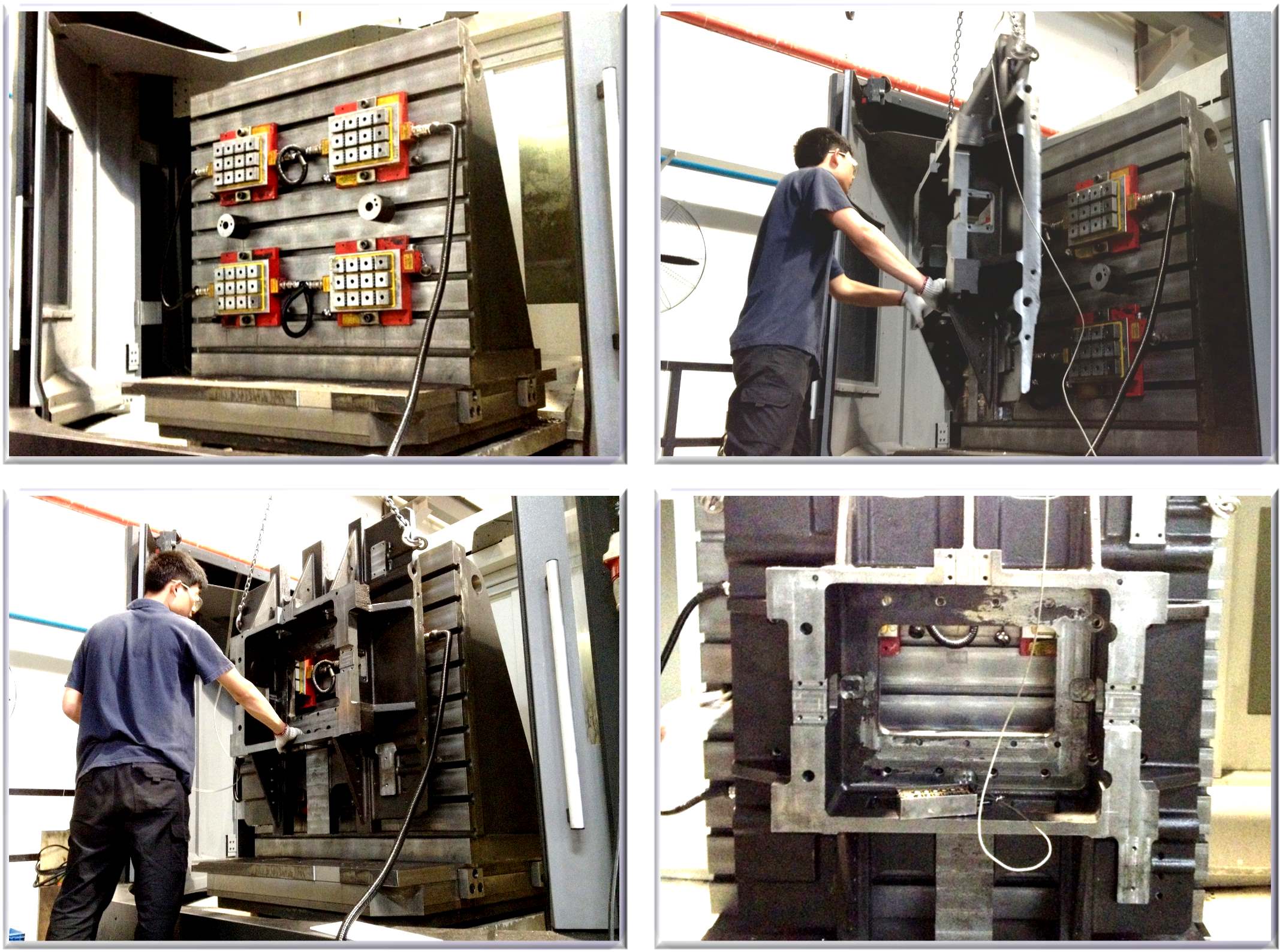

EEPM-C Series ApplicationFor more information on our full range of magnetic workholding solutions, visit our product overview or contact us directly for tailored recommendations.
